The AxiWin® AGM battery is a battery of absolute quality, produced according to the latest AGM technology. They are specially designed and produced to supply high current flows (capacity up to 220 Amp) and deeper discharges.

The AxiWin® AGM batteries have the following special properties:

SAFE:
The acid of the AxiWin® AGM batteries is permanently absorbed in the glass fibre separators, which makes the battery leak-proof (UN2800). AGM batteries produce almost no gas.
The formation of oxyhydrogen can only occur as a result of very serious overcharging and then only in very low concentrations.
Although a well-ventilated battery compartment is always the preferred choice, the AGM battery is the ideal choice if this is not possible.

EASE OF USE:
The applied technology allows 99.5% of the liquid to be recombined during charging. Except for the necessary recharging, an AGM battery requires no additional attention.

RELIABLE:
The glass fibre mat in the AGM batteries contains relatively little acid but in an increased concentration. This makes the batteries lighter in weight and makes the battery resistant to deep discharging. It is furthermore capable of providing high starting currents and it will charge quickly. The DC series has additional cyclic power, which makes it highly suitable for use in heavy applications such as internal transport, hydraulic arms, bow thrusters, anchor winches, solar panels, and in particular also for use as a service battery in caravans and boats. In short, the AGM battery is the new alternative for the “old fashioned” GEL technology!

VERSATILE:
An AGM battery can be mounted in all positions. It is even no problem to permanently install the battery at a 90-degree angle.

AxiWin® AGM+ AGM semi-tractie battery
Type No. Capacity 20HR CCA
(EN)

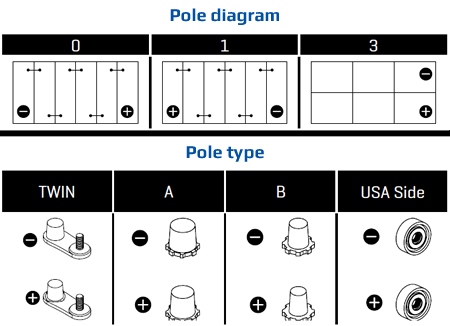

Dimensions in mm Pole
diagram
Pole
type

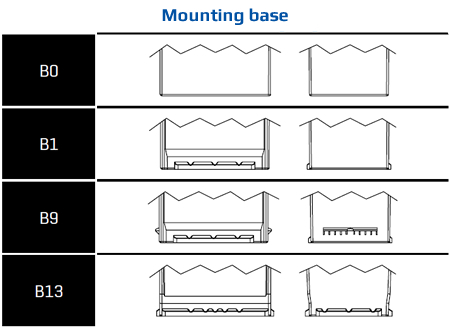

Mounting
base
Weight
(Kg)
L W H TH
AXW AGM DC60 60Ah(20hrs) 460 242 175 190 190 0 A B13 17,8
AXW AGM DC70 70Ah(20hrs) 600 278 175 190 190 0 A B13 21
AXW AGM DC85 85Ah(20hrs) 720 353 175 190 190 0 A B13 26,7
AXW AGM DC105 105Ah(20hrs) 800 345 175 210 230 0 A B13 28,3
AXW AGM DC130 130Ah(20hrs) 950 513 189 203 223 3 A B0 39,1
AXW AGM DC180 180Ah(20hrs) 1050 513 223 203 223 3 A B0 46,3
AXW AGM DC200 200Ah(20hrs) 1200 518 274 222 242 3 A B0 54,5
AXW AGM DC220 220Ah(20hrs) 1400 518 274 220 240 3 A B0 59,5
AxiWin® AGM+ AGM start/stop battery
Type No. Capacity 20HR CCA
(EN)
Dimensions in mm Pole
diagram
Pole
type
Mounting
base
Weight
(Kg)
L W H TH
AXW AGM60 60Ah(20hrs) 680 242 175 190 190 0 A B13 16,9
AXW AGM70 70Ah(20hrs) 760 278 175 190 190 0 A B13 19,6
AXW AGM80 80Ah(20hrs) 800 314 175 190 190 0 A B13 22
AXW AGM95 95Ah(20hrs) 850 353 175 190 190 0 A B13 24,9
AxiWin® AGM+ EFB start/stop battery
Type No. Capacity 20HR CCA
(EN)
Dimensions in mm Pole
diagram
Pole
type
Mounting
base
Weight
(Kg)
L W H TH
AXW EFB60 60Ah(20hrs) 560 242 175 190 190 0 A B13 16,2
AXW EFB65 65Ah(20hrs) 650 278 175 175 175 0 A B13 17,2
AXW EFB70 70Ah(20hrs) 650 278 175 190 190 0 A B13 18,9
AXW EFB80 80Ah(20hrs) 730 315 175 190 190 0 A B13 21,8
AXW EFB110 110Ah(20hrs) 950 398 175 190 190 0 A B13 28,7
